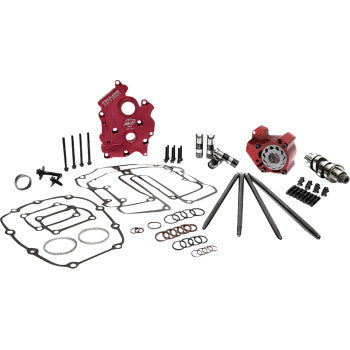

FEULING PARTS 0925-1622 7273 Race Series® Camchest Kit - 487 - Chain Drive - Water Cooled - Race Series® Lifters - M8

Features

• 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
• 487 Reaper Camshaft
  • Bolt-in
  • Chain Drive
  • Camshaft for 114" and 117" engine
  • Responds very well to increased bore and or compression
  • Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
  • RPM range 2,250 - 6,100
  • Notes
• Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
• Cam Installation Kit
  • Includes cam bearing, cam/crank hardware and gasket/O-ring kit
• Race Series® Lifters
  • Hydraulic roller lifters, standard OD (0.8420-0.8423)
  • Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
• One Piece Pushrods
  • Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
• Race Series® Oil Pump
  • Increase oil pressure, scavenge volume and engine oil flow
  • 30% more pressure gear volume over stock
  • 53% more scavenge gear volume over stock
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 46% more oil volume to the crankshaft and connecting rod bearing
  • 15°- 25° cooler engine temperatures
  • 15°- 30° cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Magnets in oil pump to help protect gears and pressure relief valve
  • Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
  • Notes
    • FEULING test results show a 50% reduction of engine sump oil level.
• High Flow Camplate
  • Billet 7075 aluminum
  • Bolts into stock location
  • Made in the USA
  • Notes
    • Feuling does not recommend tuning beyond stock emissions standards.

WARNING
DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles.

Part Notes
